Colors : Black, Candy Blue, Candy Red, White , Model : Dirty Harry Havnoonian , Suggested Retail Price : 2277.00 , Weight : Uns

Details:

HH Racing Group Dirty Harry Havnoonian (2003) bikes specifications specifications
read comments (-)	\|	add comments

Colors

Black, Candy Blue, Candy Red, White

Model

Dirty Harry Havnoonian

Suggested Retail Price

2277.00

Weight

Unspecified

Year

2003

Brake Levers

Shimano Deore RapidFire STI

Brakeset

Shimano Deore XT V-Brake brakes, Shimano Deore RapidFire STI levers

Front Brake

Shimano Deore XT V-Brake

Front Brake Lever

Shimano Deore RapidFire STI

Rear Brake

Shimano Deore XT V-Brake

Rear Brake Lever

Shimano Deore RapidFire STI

Bottom Bracket

Shimano BB-ES70, 113mm spindle

Bottom Bracket Shell Width

68mm English

Bottom Bracket Spindle Length

113mm

Chain

Shimano CN-HG93, 1/2 x 3/32`

Chain Size

1/2 x 3/32`

Chainrings

22/32/44

Crankset

Shimano Deore XT, 22/32/44 teeth

Front Derailleur

Shimano Deore XT top-swing, bottom-pull/clamp-on 31.8mm

Front Derailleur Type

bottom-pull/clamp-on 31.8mm

Handlebar

Ritchey Logic Comp

Handlebar Extensions

Not included

Handlebar Stem

HH Custom

Head Tube Angle

71.5

Headset

1 1/8` threadless Chris King NoThreadSet

Headset Diameter

1 1/8` threadless

Largest Rear Cog

Number of Rear Cogs

9-speed

Pedals

Not included

Rear Cogs

9-speed, 11 - 34 teeth

Rear Derailleur

Shimano Deore XT GS

Rear Shock

Not applicable

Rear Shock Travel

Not applicable

Saddle

Selle Italia Flite

Seat Post Diameter

27.2mm

Seat Tube Angle

73.0

Seatpost

HH Ti Post, 27.2mm diameter

Shift Levers

Shimano Deore RapidFire STI

Smallest Rear Cog

Fork Crown

single

Fork Material

aluminum, single crown

Fork Travel

80mm travel

Frame Angles

71.5 head, 73.0 seat

Frame Construction

TIG-welded

Frame Tubing Material

Reynolds 853

Chainstay Length

16.3`

Fork Rake

Unspecified

Top Tube Length

23.8`

Wheelbase

42.8`

Front Hub

Shimano Deore XT

Front Rim

Mavic F219

Front Tire

Michelin Comp S-Lite

Front Tire Size

26 x 2.10`

Rear Hub

Shimano Deore XT

Rear Rim

Mavic F219

Rear Tire

Michelin Comp S-Lite

Rear Tire Size

26 x 2.10`

Spoke Brand

DT stainless steel, 14ga. (2.0mm) straight gauge

Spoke Gauge

14ga. (2.0mm)

Spoke Holes

32-hole

Spoke Material

stainless steel

Spoke Nipples

aluminum nipples

Spoke Type

straight gauge

Available Sizes

16`, 18`, 20`, 23`, 26`

Brand

HH Racing Group

Component Group

Shimano Deore XT

Fork

Rock Shox Duke XC, 80mm travel

Frame Material

Steel

Hubs

Shimano Deore XT

Rims

Mavic F219

Tires

26 x 2.10` Michelin Comp S-Lite

Type

Mountain

Recommended Use

Suspension

Front Suspension

go to top

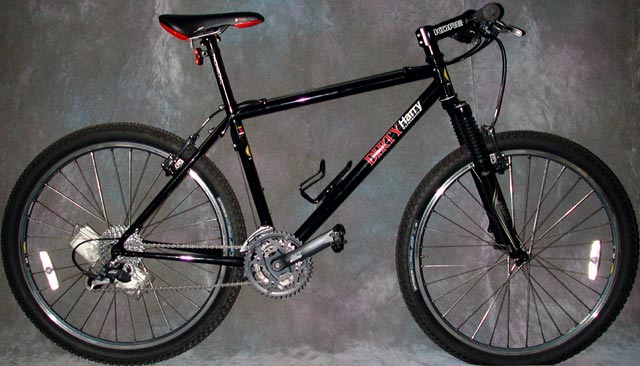

HH Racing Group Dirty Harry Havnoonian (2003)
