Details:

Jamis Durango SX (2003) bikes specifications specifications
read comments (-) | add comments
Colors  Matte Gold/Matte Black, Platinum/Primal Gray
Model  Durango SX
Suggested Retail Price  569.95
Weight  26.5
Year  2003
Brake Levers  Avid AD 3
Brakeset  Tektro forged linear-pull brakes, Avid AD 3 levers
Front Brake  Tektro forged linear-pull
Front Brake Lever  Avid AD 3
Rear Brake  Tektro forged linear-pull
Rear Brake Lever  Avid AD 3
Bottom Bracket  Chin Haur CH-52, 111mm spindle
Bottom Bracket Shell Width  68mm English
Bottom Bracket Spindle Length  111mm
Chain  KMC Z9000, 1/2 x 3/32`
Chain Size  1/2 x 3/32`
Chainrings  22/32/44
Crankset  Shimano, 22/32/44 teeth
Front Derailleur  Shimano Deore, top-pull/clamp-on 31.8mm
Front Derailleur Type  top-pull/clamp-on 31.8mm
Handlebar  aluminum, 1` rise
Handlebar Extensions  Not included
Handlebar Stem  Jamis aluminum
Head Tube Angle  71.0
Headset  1 1/8` threadless Dia-Compe STS
Headset Diameter  1 1/8` threadless
Largest Rear Cog  32
Number of Rear Cogs  9-speed
Pedals  Wellgo resin
Rear Cogs  9-speed, 11 - 32 teeth
Rear Derailleur  Shimano Deore SGS
Rear Shock  Not applicable
Rear Shock Travel  Not applicable
Saddle  Jamis ATB
Seat Post Diameter  27.2mm
Seat Tube Angle  73.5
Seatpost  aluminum, suspension, 27.2mm diameter
Shift Levers  Shimano Deore RapidFire SL
Smallest Rear Cog  11
Fork Crown  single
Fork Material  aluminum/magnesium, single crown
Fork Travel  80mm travel
Frame Angles  71.0 head, 73.5 seat
Frame Construction  TIG-welded
Frame Tubing Material  7005 aluminum
Chainstay Length  42.5cm
Fork Rake  1.5`
Top Tube Length  59.1cm
Wheelbase  106.8cm
Front Hub  Formula aluminum, Q/R
Front Rim  Alex XT-3000
Front Tire  Hutchinson Scorpion
Front Tire Size  26 x 2.00`
Rear Hub  Formula aluminum, Q/R
Rear Rim  Alex XT-3000
Rear Tire  Hutchinson Scorpion
Rear Tire Size  26 x 2.00`
Spoke Brand  stainless steel, 14ga. (2.0mm) straight gauge
Spoke Gauge  14ga. (2.0mm)
Spoke Holes  32-hole
Spoke Material  stainless steel
Spoke Nipples  brass nipples
Spoke Type  straight gauge
Available Sizes  12`, 14`, 17`, 19`, 21`
Brand  Jamis
Component Group  Mountain Mix
Fork  Answer Manitou Axel Comp, 80mm travel
Frame Material  Aluminum
Hubs  Formula aluminum, Q/R
Rims  Alex XT-3000
Tires  26 x 2.00` Hutchinson Scorpion
Type  Mountain
Recommended Use  -
Suspension  Front Suspension
go to top
JamisSo far, nothing for that!

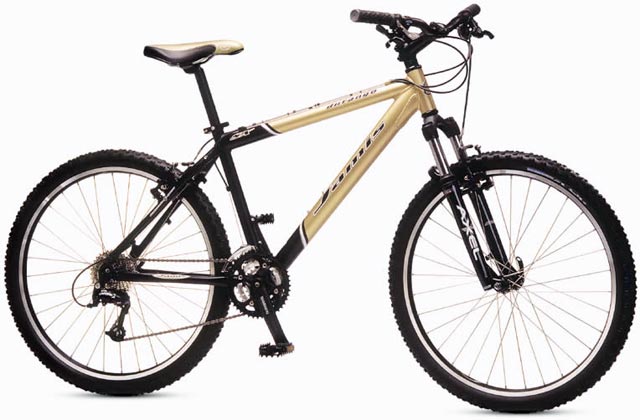

Jamis Durango SX (2003)+Agrandissez L`Image
