Details:

Redline Raid (2003) bikes specifications specifications
read comments (-) | add comments
Colors  Blue/Flames, Chrome
Model  Raid
Suggested Retail Price  139.99
Weight  Unspecified
Year  2003
Brake Levers  Promax alloy rear
Brakeset  ProMax linear-pull rear brakes, Promax alloy rear levers
Front Brake  Not applicable
Front Brake Lever  Not applicable
Rear Brake  ProMax linear-pull
Rear Brake Lever  Promax alloy
Bottom Bracket  loose ball
Bottom Bracket Shell Width  Unspecified
Bottom Bracket Spindle Length  Unspecified
Chain  KMC Z410, 1/2 x 3/32`
Chain Size  1/2 x 3/32`
Chainrings  40
Crankset  1-piece 5 1/2`, 40 teeth
Front Derailleur  Not applicable
Front Derailleur Type  Not applicable
Handlebar  Redline Junior Bars
Handlebar Extensions  Not included
Handlebar Stem  aluminum 4 bolt
Head Tube Angle  Unspecified
Headset  1 1/8` threaded steel
Headset Diameter  1 1/8` threaded
Largest Rear Cog  Not applicable
Number of Rear Cogs  1-speed
Pedals  Redline aluminum
Rear Cogs  1-speed, 16 teeth
Rear Derailleur  Not applicable
Rear Shock  Not applicable
Rear Shock Travel  Not applicable
Saddle  Redline
Seat Post Diameter  Unspecified
Seat Tube Angle  Unspecified
Seatpost  steel micro-adjust
Shift Levers  Not applicable
Smallest Rear Cog  16
Fork Crown  unicrown
Fork Material  hi-tensile steel, unicrown crown
Fork Travel  Not applicable
Frame Angles  Unspecified
Frame Construction  pulse-welded
Frame Tubing Material  hi-tensile steel
Chainstay Length  Unspecified
Fork Rake  Unspecified
Top Tube Length  Unspecified
Wheelbase  Unspecified
Front Hub  steel
Front Rim  Alex Y-2000
Front Tire  Redline Logo
Front Tire Size  20 x 2.00`
Rear Hub  steel
Rear Rim  Alex Y-2000
Rear Tire  Redline Logo
Rear Tire Size  20 x 1.75`
Spoke Brand  14ga. (2.0mm) straight gauge
Spoke Gauge  14ga. (2.0mm)
Spoke Holes  36-hole
Spoke Material  Unspecified
Spoke Nipples  brass nipples
Spoke Type  straight gauge
Available Sizes  Junior
Brand  Redline
Component Group  Not applicable
Fork  Redline
Frame Material  Steel
Hubs  steel
Rims  Alex Y-2000
Tires  Front: 20 x 2.00` Redline Logo, Rear: 20 x 1.75` Redline Logo
Type  Freestyle/Jumping
Recommended Use  -
Suspension  -
go to top

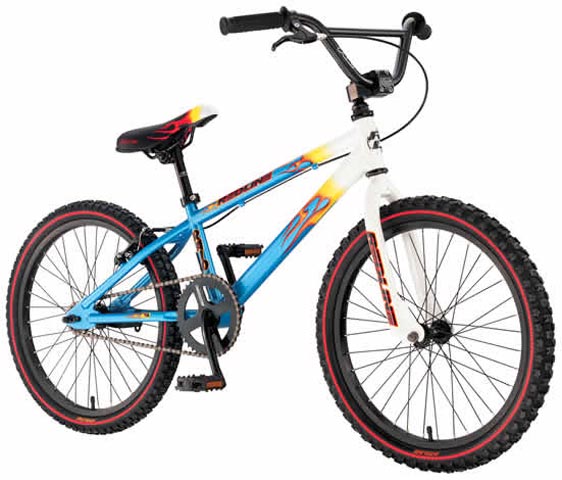

Redline Raid (2003)+Agrandissez L`Image
